High Speed There Axis Traverse Robot
Key Specifications / Features
Model No.: Hits: 146
High Speed There Axis Traverse Robot Manufacturer: Large Full Servo 3-Axis traverse robots, Short Injection Molding Cycle, Low Noise.
Request a quoteTags
Detail Information

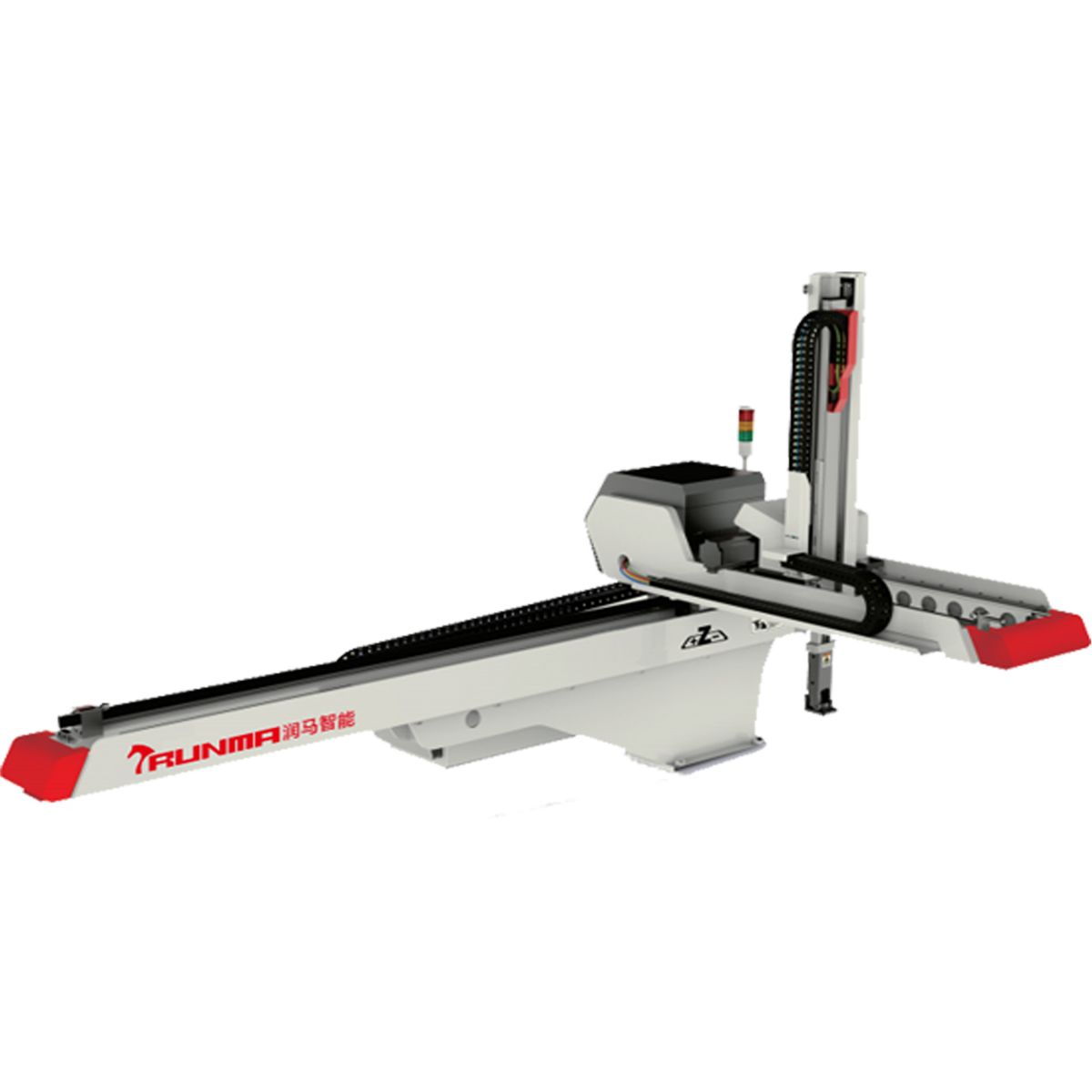

Runma three-axis high-speed traverse robot
Product Model: RG900WSS3, RG1200WSS3
Introduction
1. Large full servo traverse robot, these series are mainly applied to 200-550T
horizontal injection molding machines to take out the finished product.
2. Telescopic arms are adopted.
3. Vertical, crosswise and traverse strokes are driven by an AC servo motor.
4. Low noise THK (JP) or PMI (Taiwan) linear guideway is used to guarantee quiet and stable movement.
5. The complete set includes standard accessories.
Features: Short injection molding cycle, table and quiet movement, cheap price, fit for thin wall product
Main Specifications
Product Model: RG900WSS3, RG1200WSS3
Introduction
1. Large full servo traverse robot, these series are mainly applied to 200-550T
horizontal injection molding machines to take out the finished product.
2. Telescopic arms are adopted.
3. Vertical, crosswise and traverse strokes are driven by an AC servo motor.
4. Low noise THK (JP) or PMI (Taiwan) linear guideway is used to guarantee quiet and stable movement.
5. The complete set includes standard accessories.
Features: Short injection molding cycle, table and quiet movement, cheap price, fit for thin wall product
Main Specifications
| Model | Applied to IMM | Stoke/mm | Drive mode | Max Payload (including EoAT) /KG |
Time(seconds) | Net weight/KG | |||
| Vertical stroke /mm |
Crosswise stroke /mm |
Traverse stroke /mm |
Take-out | Dry cycle time | |||||
| RG900WSS3 | 200-320T | 900 | 200-650 | 1640 | X、Y、Z- AC servo Motor |
3kgs | 0.9 | 3.8 | 240 |
| RG1200WSS3 | 320-550T | 1200 | 200-650 | 1640 | 3kgs | 1.2 | 4.0 | 260 | |
