3-Axis/ 5-Axis Full Servo Robot 1000-1300mm
Key Specifications / Features
Model No.: 3A5AR-02 Hits: 471
3-Axis/ 5-Axis Full Servo Robot Manufacturer Provides 3-Axis, 5-Axis Full Servo Robot, Travel 1000-1300mm, for Injection Molding Machines (250-650 Ton).
Request a quoteTags:
Detail Information
Runma 1000-1300 Series traversing robot arm is applicable to all types of horizontal injection machine ranging from 250 to 650 ton for products and sprues take-out.
Single stage or telescopic type vertical arm, with product arm and runner arm, for two plate or three plate mold products take out. X-, Y-, Z-axis are driven by AC servo motor, can realize products stacking up on any points inside the mold, as well as at X, Y, Z directions, can cut the runner by scissors driven and inset or embed the accessory by the cylinder.

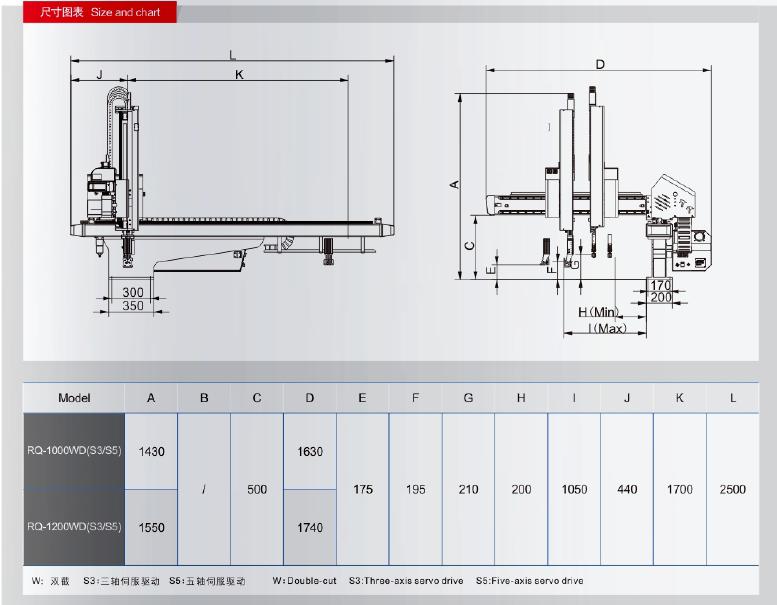

| Model | A | B | C | D | E | F | G | H | I | J | K | L |
| RQ-1000WD(S3, S5) | 1430 | \ | 500 | 1630 | 175 | 195 | 210 | 200 | 1050 | 440 | 1700 | 2500 |
| RQ-1200WD(S3, S5) | 1550 | 1740 |

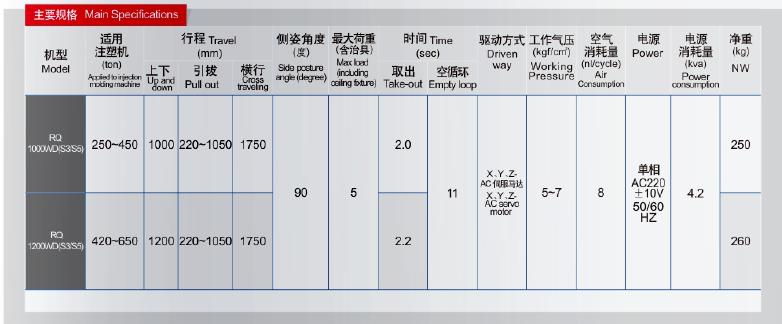

| Model | Applied to injection molding machine (ton) | Travel (mm) | Side posture angle (degree) | Max load (including fixture) | Time (sec) | Driven way | Working pressure (kgf/cm2) | Air consumption (nl/cycle) | Power | Power consumption | NW (kg) | |||
| up and down | pull out | cross traveling | take-out | empty loop | ||||||||||
| RQ-1000WD(S3, S5) | 250-450 | 1000 | 220-1050 | 1750 | 90 | 5 | 2 | 11 | x, y, z AC servo motor | 5-7 | 8 | AC220±10V 50/60HZ | 4.2 | 250 |
| RQ-1200WD(S3, S5) | 420-650 | 1200 | 220-1050 | 1750 | 2.2 | 260 | ||||||||
