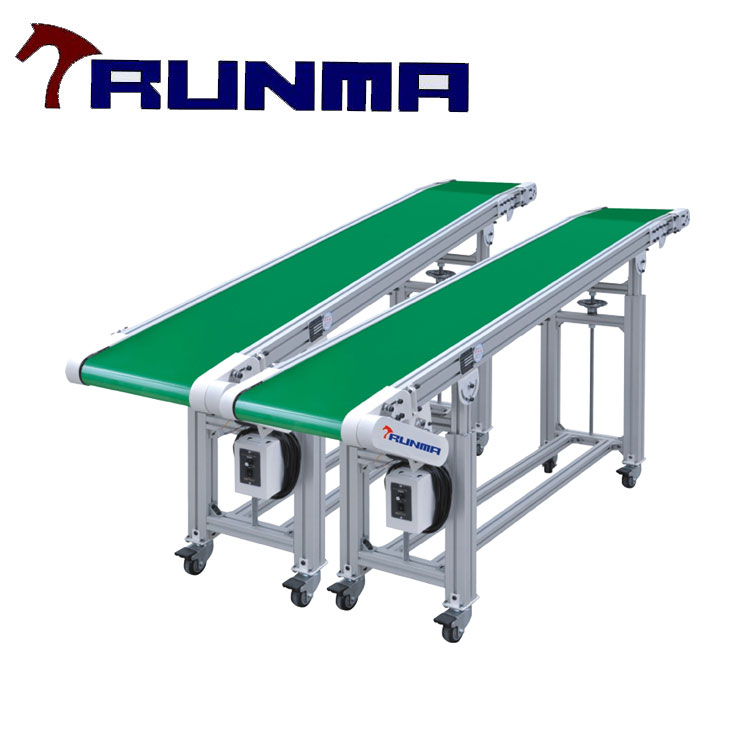

Custom Assembly Line Belt Conveyor System
Key Specifications / Features
Model No.: BC-01 Hits: 183
Assembly Line Belt Conveyor System Supplier Offers Custom PVC Belt Conveyor Systems for Assembly Line, Manufacturing Process, Aluminum Alloy Frame, Length 600-5500mm, Width 200-600mm, Anti-static.
Request a quoteTags:
Detail Information
- Full unit made with high rigidity alloy aluminum structure beam (A6064)
- A super-strong structure makes it long-wearing and not deformed.
- Convenient to use -- The height of both sides can be adjusted easily by a hand shaft.
- 4 wheels, convenient to move
- 4 fixed feet are foldable, which saves space.
- Adjustable speed, easy to use
- With standard robot connector which can be connected quickly
- A super-strong structure makes it long-wearing and not deformed.
- Convenient to use -- The height of both sides can be adjusted easily by a hand shaft.
- 4 wheels, convenient to move
- 4 fixed feet are foldable, which saves space.
- Adjustable speed, easy to use
- With standard robot connector which can be connected quickly

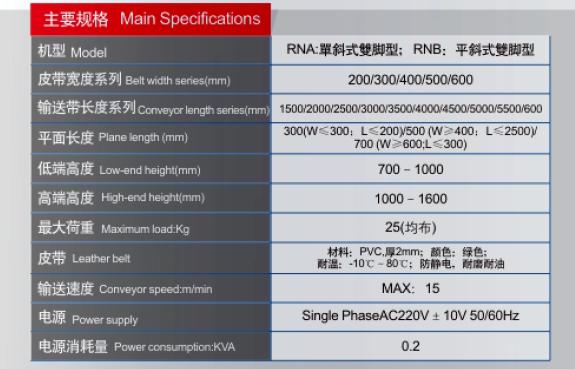

| Model | RNA; RNB |
| Belt width (mm) | 200, 300, 400, 500, 600 |
| Conveyor length (mm) | 1500, 2000, 2500, 3000, 3500, 4000, 4500, 5000, 5500, 6000 |
| Plane length (mm) | 300 (W≤300, L≤200), 500 (W≥400, L≤250),700 (W≥600, L≤300) |
| Low-end height (mm) | 700-1000 |
| High-end height (mm) | 1000-1600 |
| Max load (kg) | 25 |
| Leather belt | PVC, THK 2mm, green, -10℃-80℃, anti-static, wear-resistant, oil-proof |
| Conveyor speed (m/min) | max: 15 |
| Power supply | single phase AC220±10V 50/60HZ |
| Power consumption (KVA) | 0.2 |
