1-Axis Servo Motor Traverse Robot, 600-800mm
Key Specifications / Features
Model No.: 1AR-01 Hits: 229
1-Axis Servo Motor Traverse Robot Provider Supplies 1-Axis Servo Motor Traverse Robot for Injection Molding Machine (IMM) 40 Ton to 280 Ton, Travel 600-800mm.
Request a quoteTags:
Detail Information
Runma One Axis 600-800 Series traversing robot arm is applicable to all types of horizontal injection machine ranging from 40 to 280 ton for products and sprues take-out.
Single stage or telescopic type vertical arm, with product arm and runner arm, for two plate or three plate mold products take out. Traverse stroke (Z) driven by AC servo motor, vertical (Y) and crosswise (X) strokes are pneumatic.
- A 10-30% increase in productivity
- Reduce the defective rate.
- Ensure the safety of operators.
- Reduce manpower.
- Accurately control the output to reduce waste.
Single stage or telescopic type vertical arm, with product arm and runner arm, for two plate or three plate mold products take out. Traverse stroke (Z) driven by AC servo motor, vertical (Y) and crosswise (X) strokes are pneumatic.
- A 10-30% increase in productivity
- Reduce the defective rate.
- Ensure the safety of operators.
- Reduce manpower.
- Accurately control the output to reduce waste.

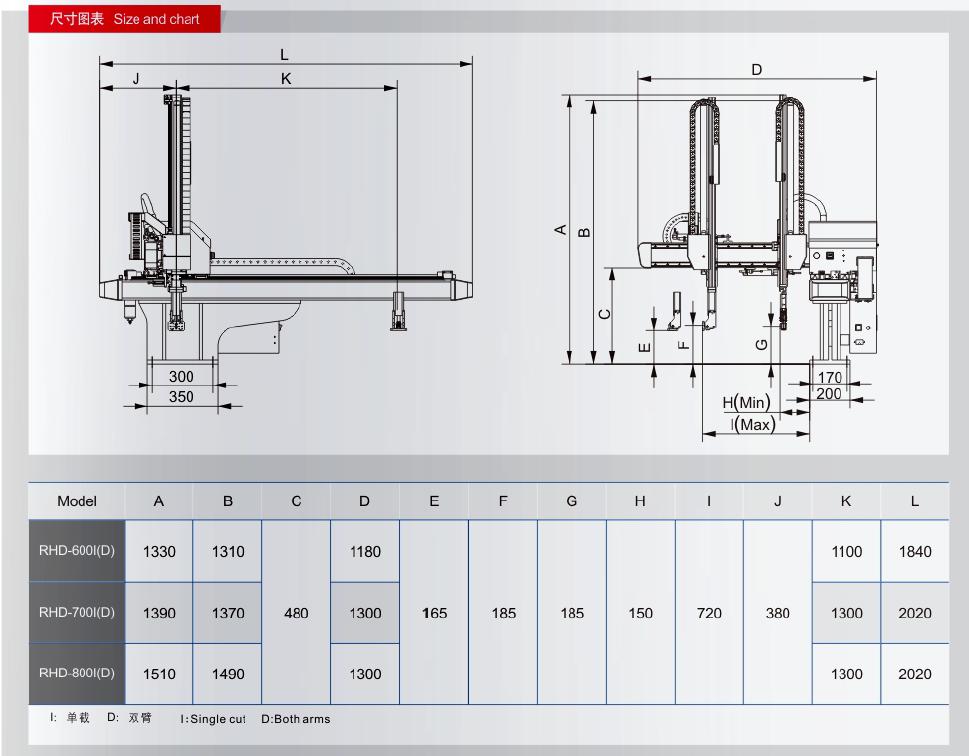

| Model | A | B | C | D | E | F | G | H | I | J | K | L |
| RHD-600I(D) | 1330 | 1310 | 480 | 1180 | 165 | 185 | 185 | 150 | 720 | 380 | 1100 | 1840 |
| RHD-700I(D) | 1390 | 1370 | 1300 | 1300 | 2020 | |||||||
| RHD-800I(D) | 1510 | 1490 | 1300 | 1300 | 2020 |

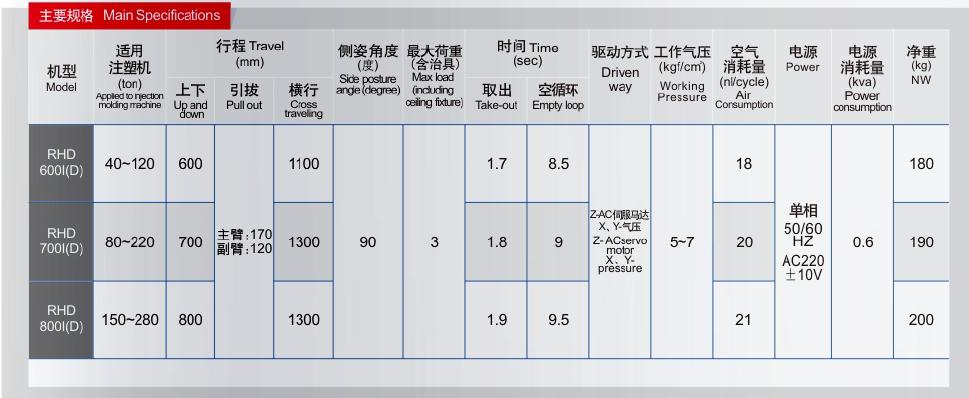

| Model | Applied to injection molding machine (ton) | Travel (mm) | Side posture angle (degree) | Max load (including fixture) | Time (sec) | Driven way | Working pressure (kgf/cm2) | Air consumption (nl/cycle) | Power | Power consumption | NW (kg) | |||
| up and down | pull out | cross traveling | take-out | empty loop | ||||||||||
| RHD-600I(D) | 40-120 | 600 | main arm: 170, auxiliary arm: 120 | 1100 | 90 | 3 | 1.7 | 8.5 | x, y, z AC servo motor | 5-7 | 18 | AC220±10V 50/60HZ | 0.6 | 180 |
| RHD-700I(D) | 80-220 | 700 | 1300 | 1.8 | 9 | 20 | 190 | |||||||
| RHD-800I(D) | 150-280 | 800 | 1300 | 1.9 | 9.5 | 21 | 200 | |||||||
